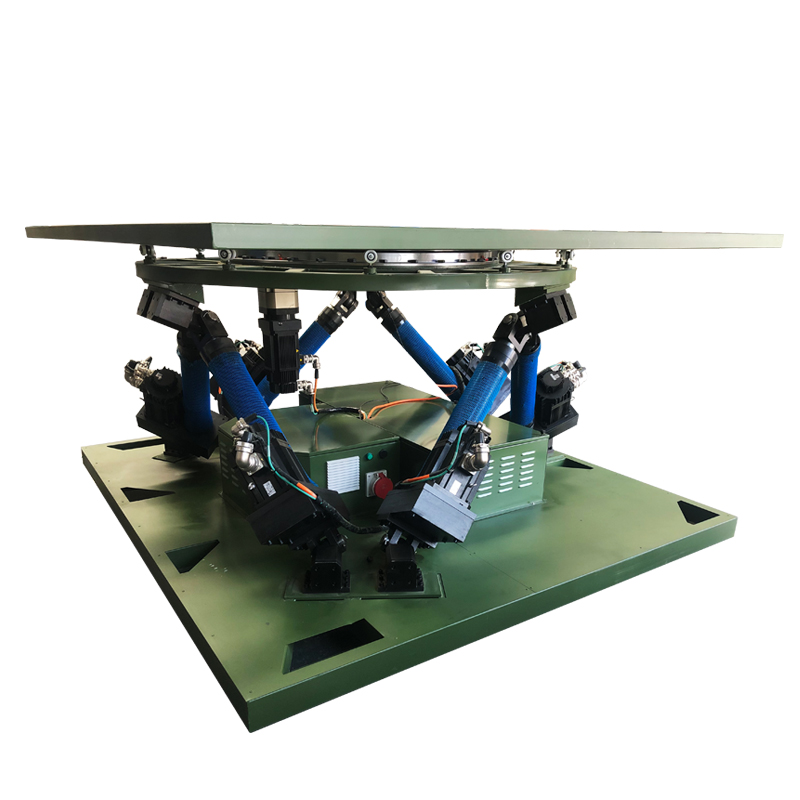

6DOF Load Platform

The platform is self-developed by Quankong Technology for research and testing of satellite antenna research and test swing tables, and the platform is suitable for satellites in motion, precision scientific research and other fields. Mobile is the abbreviation of "Mobile Satellite Ground Station Communication System". Through the mobile communication system, vehicles, ships, airplanes and other mobile carriers can track satellites and other platforms in real time during the movement, and continuously transmit voice, data, images and other multimedia information, which can meet various military and civilian emergency communications and mobile conditions The needs of multimedia communication under the.

The communication system in motion solves the difficulty of real-time and continuous transmission of voice, data, high-definition dynamic video images, faxes and other multimedia information through geostationary satellites for various vehicles, ships and other mobile carriers in motion. It is the field of communication. A major breakthrough in the field of satellite communications is currently in demand and rapidly developing applications in the field of satellite communications. It has extremely broad development prospects in both military and civilian fields.



Parameter

Platform Parameters
Electric Cylinder Parameters
Servo motor and driver parameters:
size
Customize as needed
form
Foldback
Rated speed
3000rpm
weight
500kg
Screw diameter
20mm
Working current
5A
payload
1000kg
Screw lead
5mm
Motor rated power
0.75KW*6
longitudinal displacement
250mm
journey
200mm
torque
2.39N.m
Lateral displacement
320mm
Reduction ratio
1.5
System rated total power
4.5kW
Vertical lift
320mm




pitch
±21deg




roll
±21deg




twist
±360deg





Features

·Our motion simulator platform is VR compatible, virtual reality is paired with our motion simulator.

·We offer Full 6 DOF motion simulator versions to reproduce automobiles, aircrafts, or any other vehicle motion.

·Adjustable motion simulator mounts allow customization of the platform to your needs.

·Our motion simulator is very reliable and widely used in universities and military.

·Experience every bump, vibration and speed change, an incredibly immersive experience.

·After careful design and years of experience to ensure the excellent performance and quality of each motion simulator.

·Built in power source, including an active PFC function to protect from short circuit, overload, overvoltage and overheating.

·Compatible with all major racing and flight titles on PC with simple USB plug in.

·Realistic super smooth operation using advanced actuator speed management.




Software Interface

motion platform controlling software

Program

motion platform controlling software

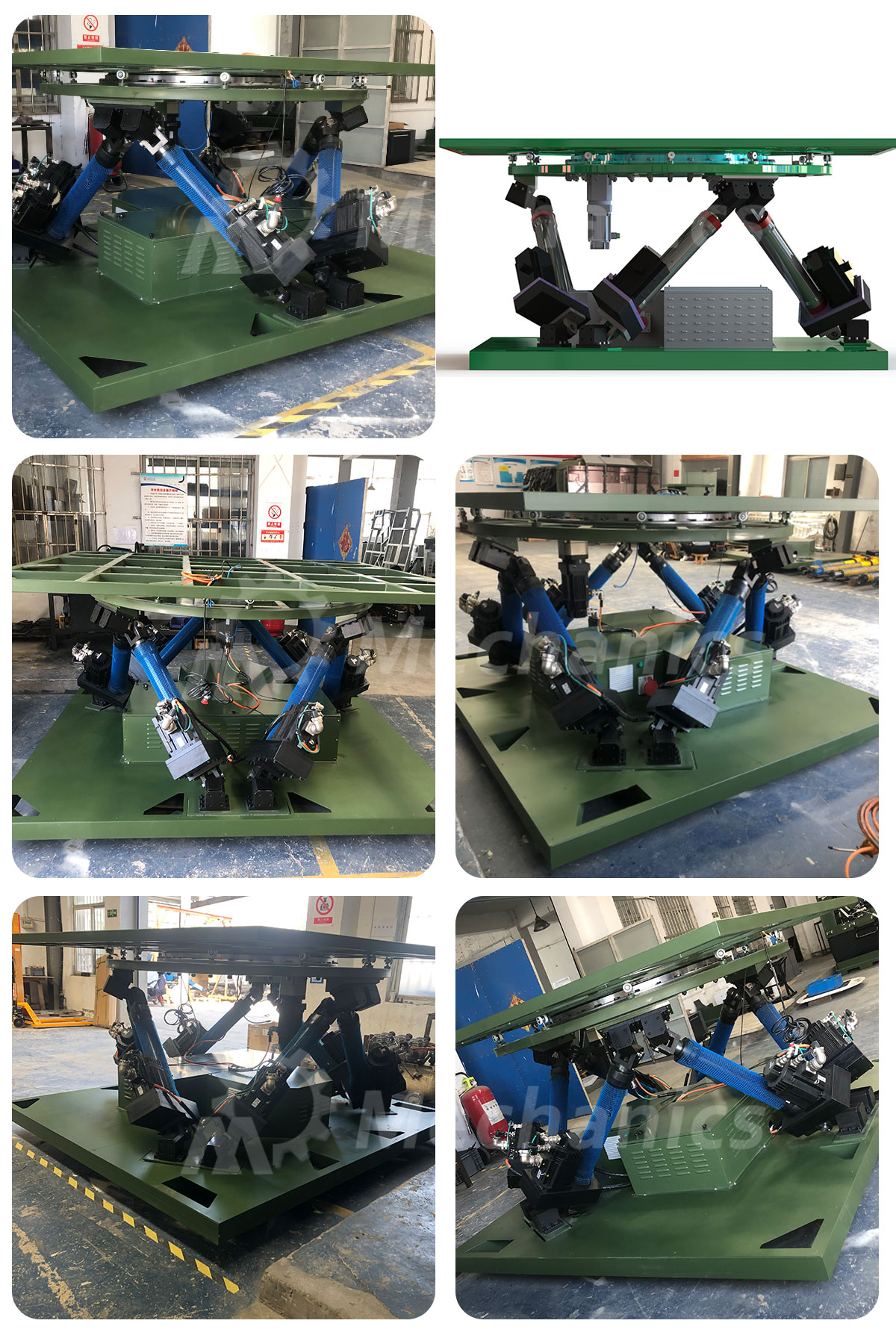

Products Show

6DOF Load Platform
