6DOF Double layer Self-balancing

Through the automatic control algorithm adjustment of the upper and lower 6DOF platforms, the automatic balance effect is achieved, which can be used in mountain environments or ocean wave environments, such as drone lift platforms, radar compensation platforms, etc.



Parameter

Platform Parameters
Electric Cylinder Parameters
Servo motor and driver parameters:
size
φ900mm*500mm*2
form
Foldback
Rated speed
3000rpm
weight
400kg
Screw diameter
20mm
Working current
3A
payload
250kg
Screw lead
10mm
Motor rated power
750W*6
longitudinal displacement
160mm
journey
200mm
torque
2.4N.m
Lateral displacement
150mm
Reduction ratio
1.5
System rated total power
4.5kW
Vertical lift
160mm




pitch
±16deg




roll
±15deg




twist
±19deg





Features

·Our motion simulator platform is VR compatible, virtual reality is paired with our motion simulator.

·We offer Full 6 DOF motion simulator versions to reproduce automobiles, aircrafts, or any other vehicle motion.

·Adjustable motion simulator mounts allow customization of the platform to your needs.

·Our motion simulator is very reliable and widely used in universities and military.

·Experience every bump, vibration and speed change, an incredibly immersive experience.

·After careful design and years of experience to ensure the excellent performance and quality of each motion simulator.

·Built in power source, including an active PFC function to protect from short circuit, overload, overvoltage and overheating.

·Compatible with all major racing and flight titles on PC with simple USB plug in.

·Realistic super smooth operation using advanced actuator speed management.





Software Interface

motion platform controlling software

Program

motion platform controlling software

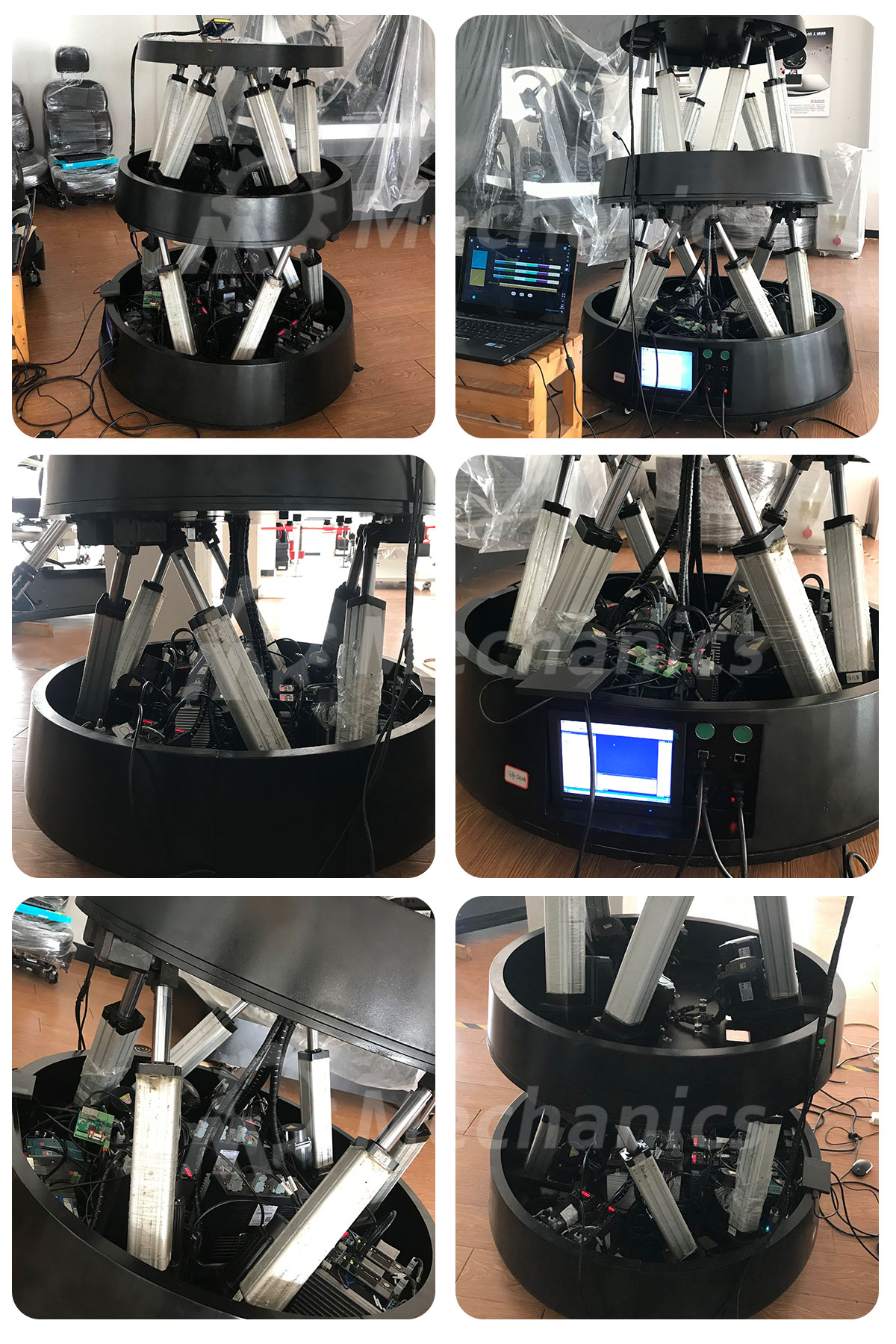

Products Show


6DOF Double layer Self-balancing
