6DOF Luxury Platform

The main difference between the high-precision 6DOF platform and the hydraulic type is the difference between the hydraulic cylinder and the electric cylinder. The performance of the electric cylinder is close to that of the pneumatic cylinder and hydraulic cylinder, but the principle is different from that of the pneumatic cylinder and hydraulic cylinder. For mechanical energy, this process is completely realized by the mechanical structure. Compared with pneumatic cylinders and hydraulic cylinders, the advantages are: the stiffness of the cylinder will not be affected by the compressibility of gas and liquid;

The electric cylinder has high precision, more stable transmission, greater carrying capacity, low return clearance, and more accurate positioning;

The electric cylinder is directly driven by the motor to achieve linear motion output. Compared with the hydraulic cylinder, it does not need additional auxiliary devices, has a compact structure, no pollution, and has good controllability;

The electric cylinder is driven by electricity, which can solve the problem of air leakage or liquid leakage and prolong the service life;

Electric cylinders are generally made of self-lubricating materials, do not need to add lubricating grease during use, and have the characteristics of maintenance-free; electric cylinders do not require complicated power pipelines and are easy to install.

The high-precision 6DOF dynamic platform can be widely used in various training simulators such as flight simulators, ship simulators, naval helicopter take-off and landing simulation platforms, tank simulators, car driving simulators, and trains by docking with high-performance visual simulation. Driving simulators, earthquake simulators, dynamic movies, entertainment equipment and other fields!



Parameter

Platform Parameters
Electric Cylinder Parameters
Servo motor and driver parameters:
size
Customize as needed
form
Foldback
Rated speed
3000rpm
weight
100kg
Screw diameter
16mm
Working current
3A
payload
150kg
Screw lead
10mm
Motor rated power
400W*6
longitudinal displacement
320mm
journey
350mm
torque
1.27N.m
Lateral displacement
310mm
Reduction ratio
1
System rated total power
2.4kW
Vertical lift
320mm




pitch
±35deg




roll
±36deg




twist
±35deg





Features

1. In order to enhance the realism of the simulation, there are high-performance dynamic prompts;

2. Fully digital closed-loop servo control, professional motion control card to ensure smooth transition of motion and high simulation, reducing dynamic drift and distortion.

3. New modular combination and free and flexible system integration to meet different needs of customers

4. High-precision transmission system and optimized combination to ensure the high efficiency of the system reaches 85%

5. Easy installation and simple maintenance Multiple mechanical and electrical safety protections ensure the absolute safety of equipment

6. The system has high response time, high acceleration and low noise

7. Visible and friendly man-machine interface, easy to operate

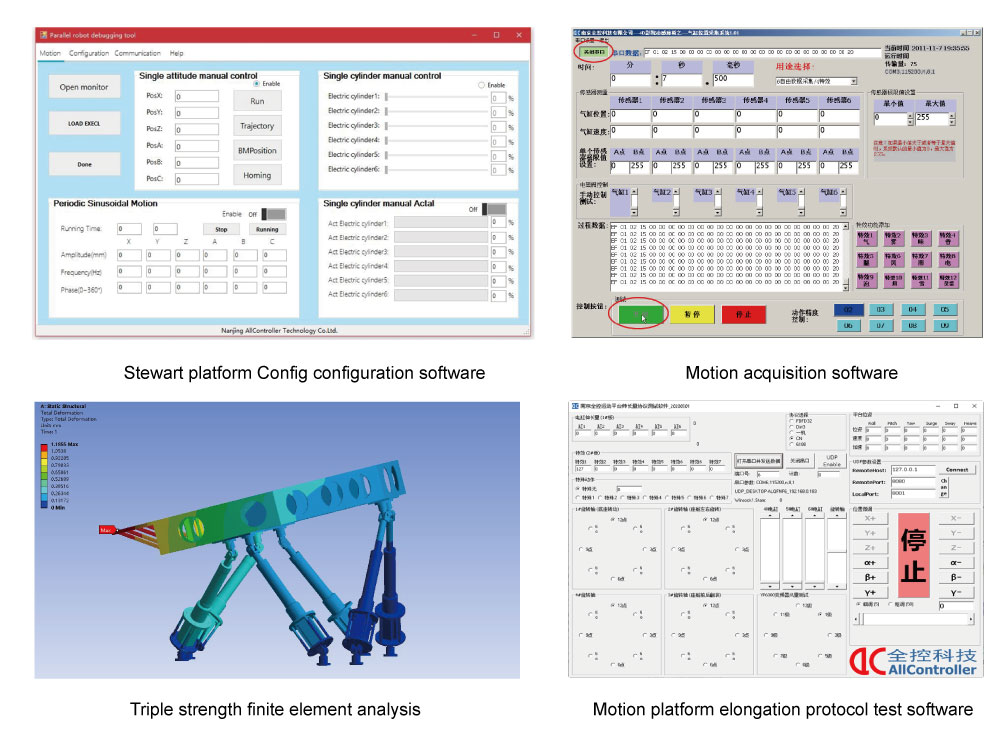

Software Interface

motion platform controlling software

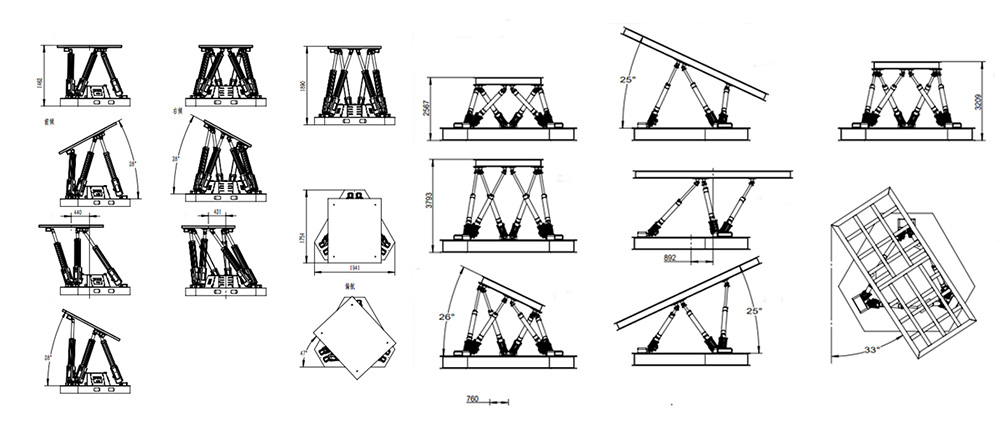

Program

motion platform controlling software

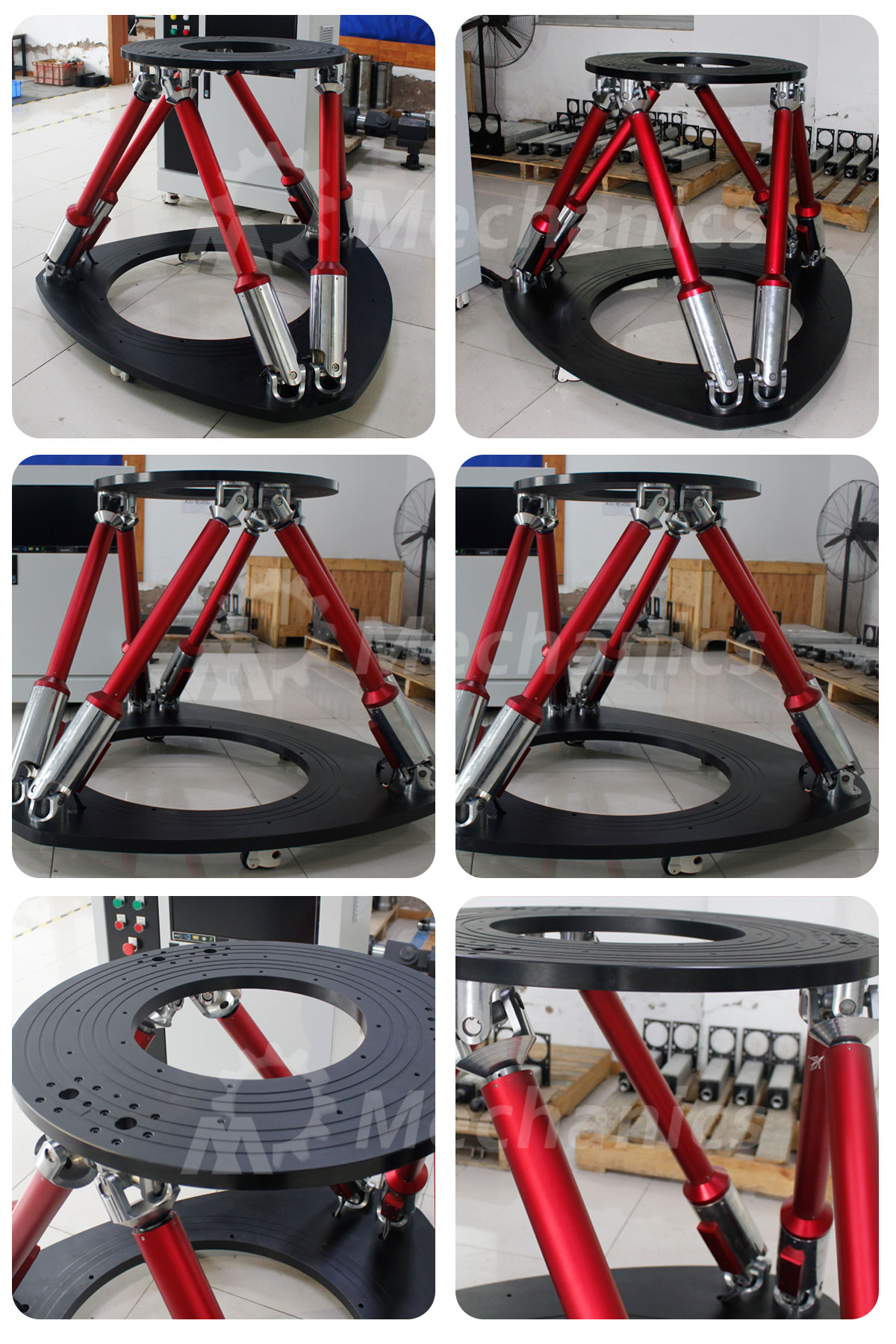

Products Show

6DOF Luxury Platform
