The 6dof platform is used to test the vehicle's shock absorption performance by simulating the actual running state of the vehicle, road spectrum simulation experiment and simulation result analysis. The six-degree-of-freedom platform is composed of six electric cylinders and the upper and lower platforms. With the help of the telescopic motion characteristics of the electric cylinder, the movement of six degrees of freedom (x, y, z, α, β, γ) in three-dimensional space is completed, thereby simulating A variety of spatial movement gestures. This platform project is based on the analysis of vehicle posture on the motion platform, and the establishment of the Weizi inverse solution equation, which provides important theoretical knowledge for the detection of construction machinery performance and the movement of multi-degree-of-freedom mechanisms.

Parameter

Platform Parameters		Electric Cylinder Parameters		Servo motor and driver parameters:
size	Customize as needed	form	Foldback	Rated speed	3000rpm
weight	100kg	Screw diameter	10mm	Working current	3A
payload	100kg	Screw lead	5mm	Motor rated power	400W*6
longitudinal displacement	230mm	journey	200mm	torque	1.27N.m
Lateral displacement	210mm	Reduction ratio	1.5	System rated total power	2.4kW
Vertical lift	120mm
pitch	±15deg
roll	±16deg
twist	±42deg

Features

·Our motion simulator platform is VR compatible, virtual reality is paired with our motion simulator.

·We offer Full 6 DOF motion simulator versions to reproduce automobiles, aircrafts, or any other vehicle motion.

·Adjustable motion simulator mounts allow customization of the platform to your needs.

·Our motion simulator is very reliable and widely used in universities and military.

·Experience every bump, vibration and speed change, an incredibly immersive experience.

·After careful design and years of experience to ensure the excellent performance and quality of each motion simulator.

·Built in power source, including an active PFC function to protect from short circuit, overload, overvoltage and overheating.

·Compatible with all major racing and flight titles on PC with simple USB plug in.

·Realistic super smooth operation using advanced actuator speed management.

Software Interface

Program

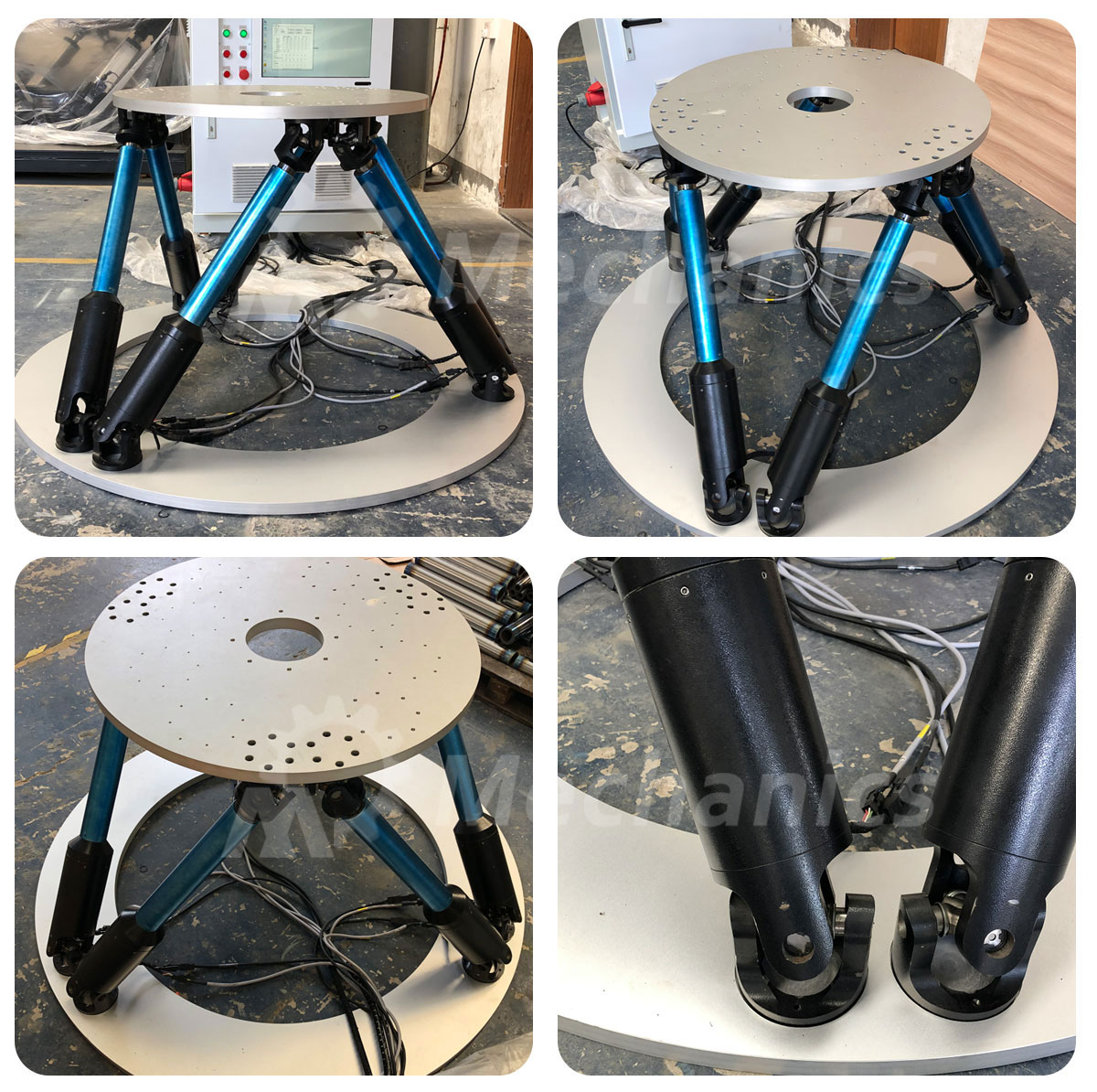

Products Show
